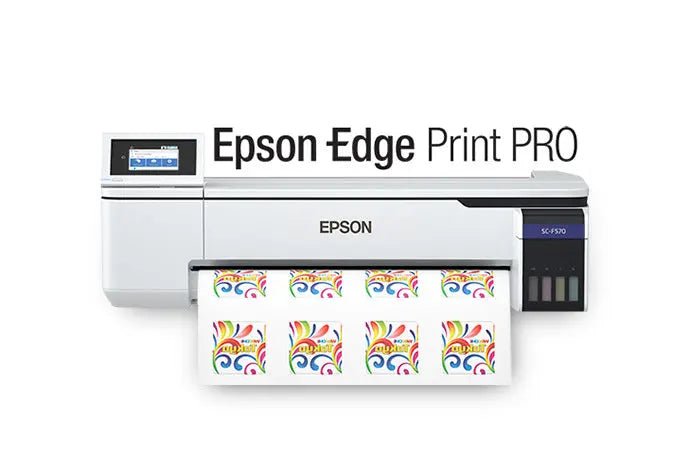

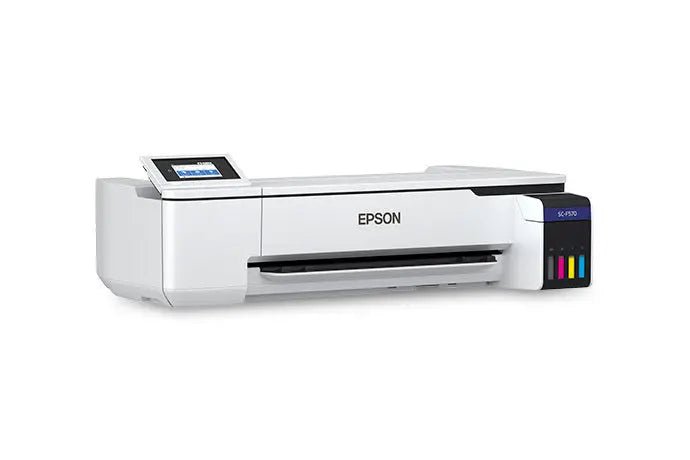

Epson SureColor F570 Pro 24 Inch Desktop Dye-Sublimation Printer

The complete, 24" solution for fast, efficient dye-sublimation printing! Get fast, high-performance dye-sub printing right out of the box with the 24" SureColor F570 Pro. This high-performance dye-sublimation printer delivers professional-quality prints using powerful PrecisionCore technology, ideal for personalizing awards, mugs, mousepads, and more. A truly turnkey solution, the SureColor F570 Pro arrives with a host of convenient features to streamline workflow, including Epson Edge Print Pro software with Adobe PS3 and PDF Print Engines, specialized transfer paper for both rigid and soft media, and a 50-sheet auto-feed tray and built-in cutter. Plus, you can maximize workshop space with its remarkably compact, space-saving design.

ADDITIONAL DETAILS

• Reliable performance backed by Epson's world-class service and support

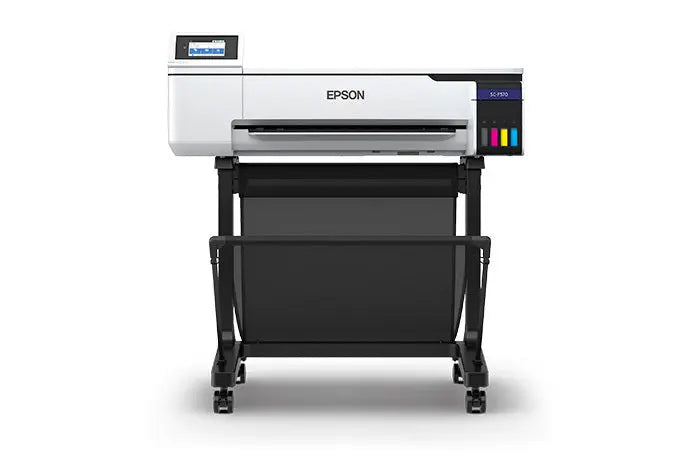

• Compact, clean design - ultra small2, sleek, minimal design; easily fits on a desktop, or on its own with optional stand (sold separately)

• Intuitive operation - large 4.3" LCD color touchscreen simplifies print tasks

• Flexible connectivity - easily connect to the printer via USB, Ethernet or integrated wireless

• Astounding print quality, powered by PrecisionCore

• Epson ink delivers bright, brilliant images

• Professional software with Epson Edge Print Pro

• 50-sheet feed tray; roll media support; built-in cutter

• Replace ink less often with high-capacity ink bottles

What's in the box:

• SureColor F570 Printer

• Epson Edge Print Pro software

• Two Full Sets of Initial Ink Bottles (CMYK 140 mL)

• DS Transfer Multi Use Paper one 24" x 100' Roll, two 17" x 100' rolls

• Start Here Poster

• User Guide

• AC Power Cable

Print:

• Printing Technology:
  PrecisionCore MicroTFP 4-channel, drop-on-demand printhead

• Maximum Print Resolution:
  2400 x 1200 dpi

• Droplet Technology:
  Variable Droplet Technology

• Nozzle Configuration:
  Color and monochrome heads; 800 nozzles x 4 channels

Paper Rolls:

• Single Roll Top-loading:
  24" wide

• 2" Core Diameter:
  Adjustable roll media adapters

• Roll Cutting:
  High-speed internal rotary cutter; auto or manual

• Maximum Roll Diameter:
  Up to 4.3"

• Media Thickness:
  Up to 8.6 mil

Paper Sheets:

• Single Sheet Top Loading:
  Up to 24" wide

• Auto Sheet Feeder:
  11" x 17" Tabloid/A3

• Minimum Sheet Size (1 sheet and ASF):
  Letter/A4

• Max. Paper Width:
  24.4"

• Left and Right Margins:
  0 mm to 3 mm each (0.24" total)

• Minimum Paper Width:
  Roll: 8.27"
  Sheet: 8.27"

Ink:

• Ink Type:
  Epson T49M Ink Bottles

• Ink Palette:
  4-color (C, M, Y, K)

• Replacement Ink:
  Black Ink Bottle T49M120
  Cyan Ink Bottle T49M220
  Magenta Ink Bottle T49M320
  Yellow Ink Bottle T49M420

General:

• Operating Systems:
  Windows 10, Windows 8, 8.1 (32-bit, 64-bit), Windows 7 (32-bit, 64-bit)
  Mac OS X 10.6 macOS 10.15.x6

• Temperature:
  Operating: 50 degrees to 95 degreesF (10 degrees to 35 degreesC)
  Storage: -4 degrees to 104 degreesF (-20 degrees to 40 degreesC)

• Humidity:
  Operating: 20 80%
  Storage: 5 85% (no condensation)

• Sound Level:
  Operating: Approx. 50 dB(A)
  Sleep: Approx. 32 dB(A)

• Dimensions:
  38" x 32" x 10"

• Safety Approvals:
  UL (MET), FCC (Class A), CSA, CE, EMC
